M20 Micro Water Pump DC2.0-6.0V Title:
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances and Sweeper
M20 Micro Water Pump DC2.0-6.0V Description:
-
Rated Voltage range:DC2.0V-6V
-
Rated Speed:1000rpm-10000rpm
-
Motor Size: φ10*15mm,diamter 10mm ,15mm length mini motor
-
Suitable to small diameter, low noise and big torque application
-
Motor default direction:CW&CCW
-
Motor type :Brush dc motor
-
Brush type :Metal brush/Carbon brush
-
Motor shaft diameter :φ2.0mm
-
Can be match with wheel, One shaft one wheel or one motor, one wheel
-
Power:0-4.0 W
-
Pressure:0-130KPA
-
Flow:50-120mL/Min Use environment:0~50°℃,75%RH
-
Working temperature:-40~+60°c
-
We can provide samples for your test.
-
Rotating speed is constant and can be made as you required.
-
Widely used in Water pump Air pump, Household appliances, sweeper, beauty instruments, aquarium equipment Health care equipment,medical equipment,beauty equipment
M20 Micro Water Pump DC2.0-6.0V Key Attributes:
Rated Speed(RPM)
1000rpm-10000 rpm
Continuous Current(A)
10-150mA
Place of Origin
Guangdong, China
Use
Sweeper, Water pump Air pump ,Health care equipment, household appliances,medical equipment,beauty equipment
Type
Micro Water Pump DC2.0-6.0V
Construction
Permanent Magnet
Protect Feature
Totally Enclosed Product Name
3V Micro Water Pump
Application
Sweeper, Water pump Air pump ,Health care equipment, household appliances
Motor type
M20 Micro Pump
M20 Micro Water Pump DC2.0-6.0V Product Photo:

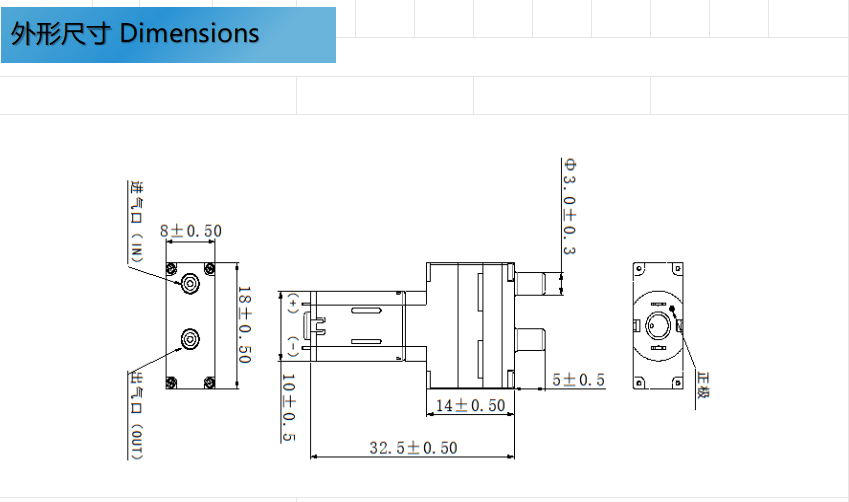

M20 Micro Water Pump DC2.0-6.0V Product Spec:
M20 Micro Water Pump Typical Applications
● Househdld Appliances:Air freshener,smartvacuumcleaner,soap dbperser,Water pump Air pump, Health care equipment, household appliances,medical equipment,beauty equipment,Sweeper
Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.
Packaging and delivery:
Packaging Details
Strong Carton 250pcs/box, or as you wish.
Port
Shenzhen/Guangzhou/Shanghai
Selling Units:
Single item
Single package size:
37X27X24cm
Single gross weight:
10.5kg
Supply Ability:
Supply Ability
100000 Piece/Pieces per Month
Lead time:
| Quantity (pieces) | 1 - 100 | 101 - 1000 | > 5000 |
| Lead time (days) | 10 | 15 | To be negotiated |
Samples:
Maximum order quantity: 1piece
Sample price: $1.5/piece
Certifications:
Factory Show:
Product Classification:
Applications:
Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,
5G communication,Smart home
Q1:What's the price? A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.
Q2:What's the MOQ?
A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.
Q3:How to deliver the goods? A3: We will deliver via Express such as UPS,FEDEX,DHL,TNT etc. It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective.
Q4:Can you make our logo on the products? A4:Certainly,logo is easy as most of our products are customizable. So logo in usually logo is necessary.It can be printed,emboridered,embossed/jacquard.
Q5: What's the payment term? A5: For small amount,we accept 100% payment via Western Union. For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
Product Tags:
|
|
JSBM20-A Micro Water Pump DC2.0-6.0V Flow 50-120mL/Min For Household Appliances, Sweeper Images
|
